TPL740

The TPL740 series products are high performance and low dropout linear regulators. The TPL740 series products support maximum 500 mA output current with low quiescent current and high PSRR. The TPL740 series products is stable with ceramic output capacitor from 2.2 μF to 10 μF.

应用领域

• Handheld Devices with Battery Power Supply
• POS
• Video Surveillance
• Wireless and IoT modules

申请样品选型指南立即咨询

特性特点

The TPL740 series products have a high PSRR with 60 dB at 1 KHz. This feature makes TPL740 series products very suitable for power-sensitive applications with high noise from previous stage power supply. As low as 49 μA quiescent current and only 20 nA shutdown current makes the TPL740 series products ideal choices for portable devices with battery power supply. Current-limit foldback and thermal overload protection circuits improves the reliability under heavy load conditions.

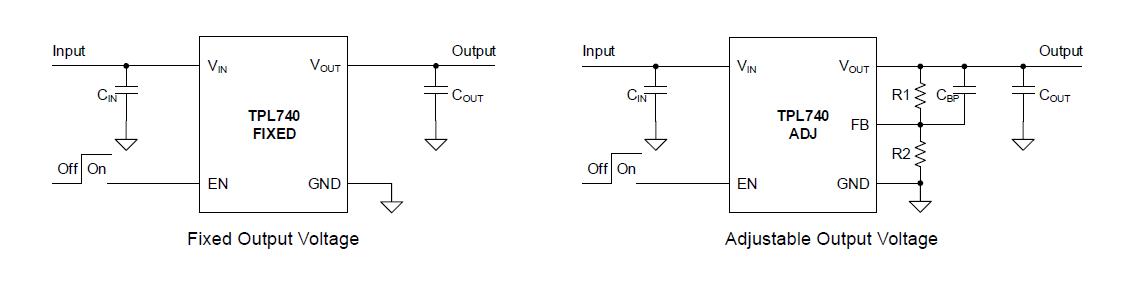

The TPL740 series products provide several output voltage version options including fixed version and adjustable version with ±2% output voltage accuracy over operating conditions. The TPL740 series products are guaranteed over operating temperature range from –40°C to +85°C.

主要特征

Inspanut Voltage Range: 2.4 V to 5.5 V
Outspanut Voltage Ospantions:
Fixed Voltage: 1.2 V, 1.5 V, 1.8 V, 2.5 V, 2.7 V, 2.8 V, 2.9 V, 3 V, 3.3 V
Adjustable Voltage: 0.8 V to 5 V
High Outspanut Accuracy:
±1% Tyspanical Under Room Temspanerature
±2% Through Ospanerating Conditions
Maximum Outspanut Current: 500 mA
Low Drospanout Voltage: 400 mV at 500 mA
Low Quiescent Current and Shutdown Current
Foldback Current Limit and Thermal spanrotection
Stable with 2.2 μF Ceramic Caspanacitor
Inrush Inspanut Current Limitation During Start-uspan
Thermal Shutdown spanrotection
Ospanerating Temspanerature Range: −40°C to +85°C
Junction Temspanerature Range: −40°C to +125°C
spanackage: SOT23-5, SC70-5, SOT89-3, 1×1 DFN-4
